The VV-DV Series.
Disposable adsorbers with valves for indoor, outdoor & offshore use.
GIEBEL Adsorber® of the VV-DV series are aeration dryers with a one-way cartridge and a valve part. They are suitable for indoor, outdoor and offshore use on hydraulic power packs, gearboxes, storage tanks and mobile machinery.
The plastic housing is filled with GIEBEL Xdry®. The desiccant mixture ensures effective drying of the supply air. A 3 μm filter additionally cleans the intake air. When air is forced out of the system, a layer of activated carbon adsorbs escaping oil mist, thus protecting the desiccant and the environment from contamination. When the adsorber is saturated, only the cartridge is replaced. The stable and frost-proof valve part remains on the system. It protects the adsorber from unnecessary loading, enables use under extreme, dusty ambient conditions, and ensures minimal pressure build-up even at high air flows.
Downloads.
Mode of operation.
Technical data.
Flowchart

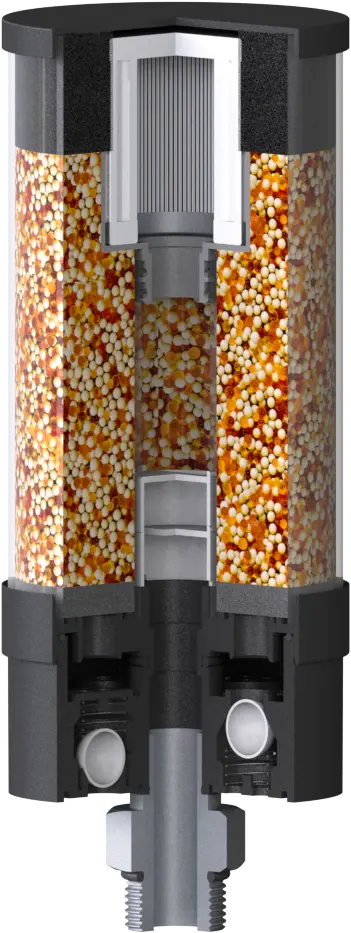

The sucked-in air opens the valves in the lower part of the adsorber already at approx. 6mbar. After flowing into the adsorber, the air is evenly distributed over the cross-section. The pre-filter disc frees the air from coarse dirt particles.
When flowing through the desiccant, the water molecules are reliably removed from the air. The gap volume of the granulate is optimally selected with 2 to 5 mm grain size and guarantees a minimum pressure build-up with very good drying efficiency at the same time. Thus, a residual air humidity of max. 2% rH and a dew point of -40°C are achieved at the beginning of the drying process. A 3µm filter ensures that all dirt particles are separated from the ambient air and the GIEBEL Xdry® fill and that the connected plant is not contaminated.
When air is discharged, a two-stage slosh protection and a layer of activated carbon prevent oil droplets, oil particles and oil mist from entering the desiccant, thus enabling the adsorber to self-regenerate.
As saturation increases, the orange silica gel grains of the GIEBEL Xdry® fill turn green. If the silica gel grains have turned completely green, the adsorber must be replaced.

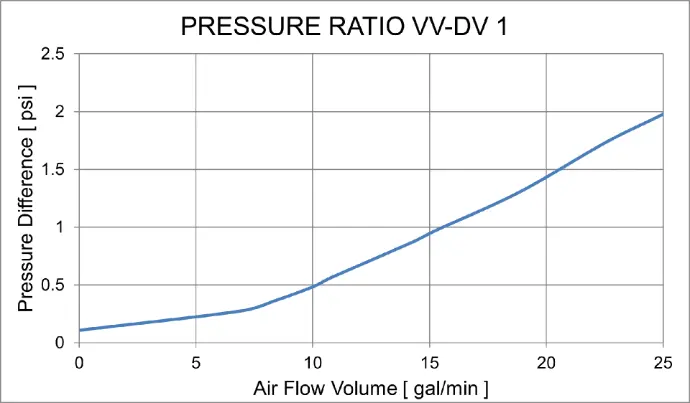

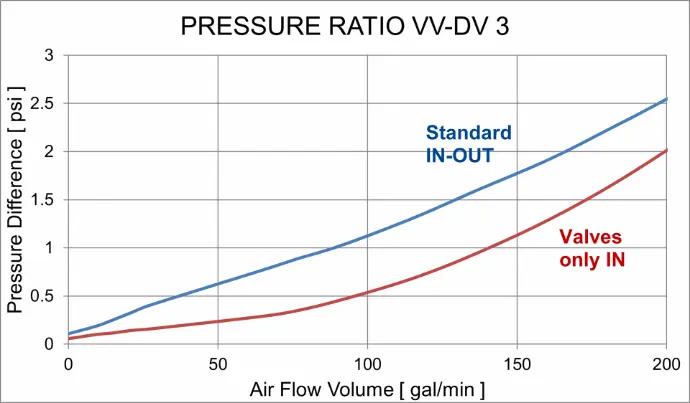

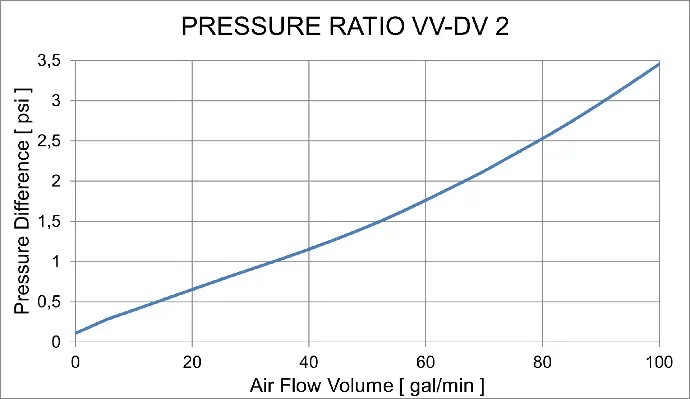

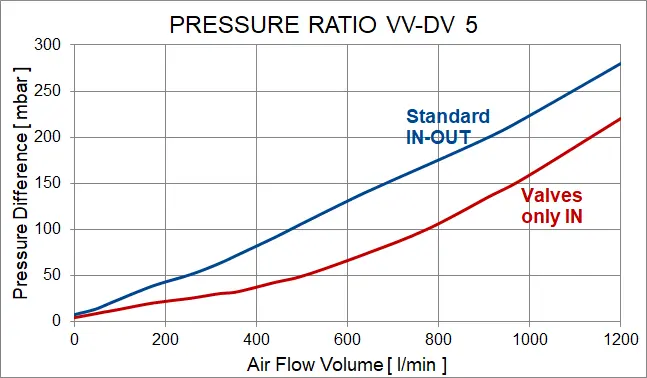

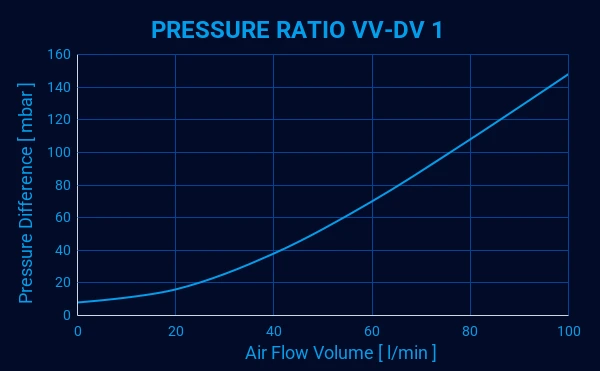

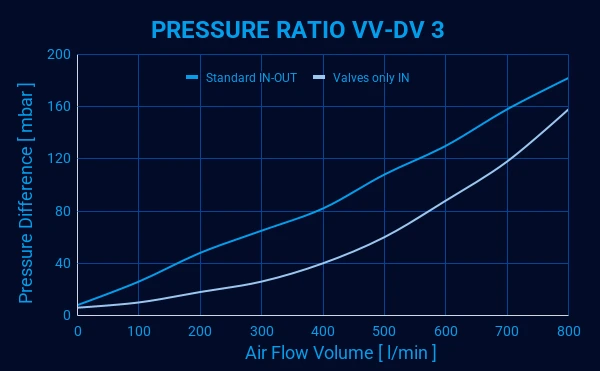

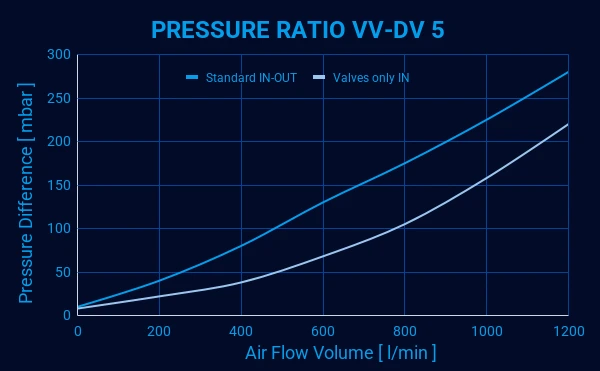

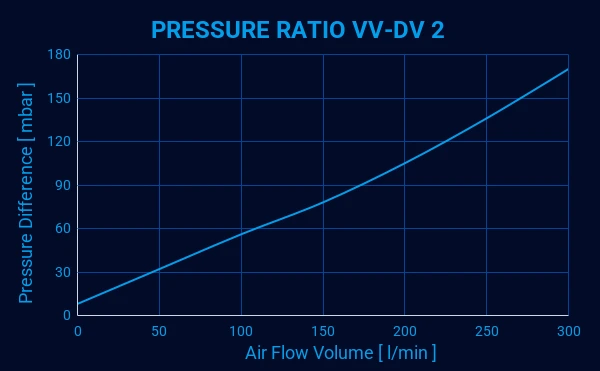

Pressure ratios.
Replacement cartridges.
We have developed replacement cartridges for the VV-DV series. Unscrew the loaded cartridge from the valve section and screw on a new cartridge.
Adsorber | Replacement cartridge |
VV-D 1L | VV-D 1L |
VV-D 2M | VV-D 2M |
VV-D 3M | VV-D 3M |
VV-D 5M | VV-D 5M |
